| Model: | A3712 | |
| Item Title: | Thermostat, Healing, cooling, Heat Pump 5+2-Day Programmable Energy Saver digital SALE FREE SHIPPING. | |
| Price: | $19.77 | |
| S&H: | $0, Continental USA, S&H varies to other areas and countries. | |
| Checkout: Credit Card or PayPal Account: | Or Make An Offer | |

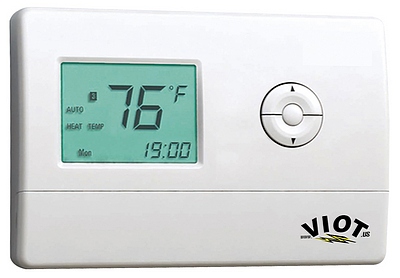

CLICK on picture to change a picture view. NEW Digital Thermostat, Heating and/or Cooling Or Heat Pump
model: A3712;Single Zone Heating and or Cooling;
24 VAC Power supply with battery backup;
5+2 days weekly programmable, upto 4 temperature period each day(Energy saving!);
Large panel; Large display; Easy to wire; Looks pretty!
GREAT Design for upscale homes and offices!
- Heating, air conditioning or heat pump
- Furnace control, powered by either electric or gas.
- 24 VAC with battery backup, you will never loss the program you set up.
- Temperature display in C or F
- 5+2 or 7 days programmable temperature control
- Up to 4 temperature periods per day, Big Energy Saver!
- Hour display in 12 with AM/PM or 24 hour military time
- Large easy to read display with back light.
- Large panel (recover and replace all brand, will not leave white mark on wall).
- SPECIFICATION:
Temperature Sensor: NTC thermistor, built in, 10K.
Temperature range :49 to 95 F
Setting Accuracy: 1 degree.
POWER: 24 VAC with 2 AAA battery back up
Wire Connections: Rc/Rh/G/W/Y
Physical Size: 140X95X28 mm(W, H, D)
WEIGHT: 1 lb
- User manual come with the package and download available
WE SUPPLY HVAC SCHOOLS AND CONTRACTORS!
I assume this thermostat is for auxiliary heating:
White – The white wire is what connects to the (auxiliary) heat on your system.
Yellow – The yellow wire connects to your compressor. not connected in your case
Green – The green wire connects to the fan.
Orange – This wire connects to your heat pump (if you have one). not connected in your case
Red – power in: split this and wire. (there can be two separate wires for this. One is for cool and the other is for heat, hence the abbreviation “RH” and “RC”.)
Blue – This is your common or “C” wire. split this and wire to this thermostat.
