VIOT Professional HVAC Tools and Parts

New Products from VIOT:

We are devoted at developing new products for the HVAC service man and woman in the field.
Please check with us here for all the new products we have for you from time to time.

Product Model:


Brief Description:

Model:	RU250
Item Title:	Refrigerant ecovery unit:push-pull, liquid/gas 110 VAC/60Hz, 1/2HP Compressor
Price:	$497.77
S&H:	$37.75 (for lower 48 States, 2X to HI, AK; 3X to Canada)
Checkout Choice 1: Credit Card or With PayPal Account: Choice 2: Google Checkout Account

Oil-less Push/pull compressor,
Automatic tank-full/high pressure shut-off at 550 PSI.
Recover all Commonly Used Refrigerants of CFC, HFC, HCFC; Including R410A, R22, R134a, R12, R502, R404 R407, R402, R500 etc.
Purge for self-cleaning between systems/jobs
Recover refrigerants in liquid or gas phase, no switch to worry about
High recovery rate, liquid (6 lb per/min)
All parts contained in a rugged hard plastic carrying case.
Single Voltage: 115 VAC motor 1/2 hp
Come with an inline filter-dryer and short 1/4"X1/4" flair hose.

Model:	VPD6
Item Title:	VPD6: 2-Stage Rotary Vane High Performance Deep Vacuum Pump 6.0 CFM: Intake ports w/hand valve: 1/4&3/8"SAE MFL &1/2"ACME
Price:	$197.75
S&H:	$29.95 (for lower 48 States, 2X to HI, AK; 3X to Canada)
Checkout Choice 1: Credit Card or With PayPal Account: Choice 2: Google Checkout Account

Aluminum ALLOY CASING: Alloy casing has high heat-dissipation, keeping motor and pump cool, light weight and strong.
Two-Stage Rotary Vane Deep Vacuum Pump
Direct drive motor allowing easy starting and is maintenance free.
Direct coupling between the motor and pump results in quiet running and good performance.
Great tool for: AC system evacuation(Refrigeration or Air Conditioning), printing, medical, Vacuum Packing, Hot Forming Plastics and other applications that require high quality vacuum pump.
Oil drain valve positioned at bottom of oil reservoir.
INTAKE PORT: 1/4 inch SAE, and 3/8 inch SAE flair, and an adapter to 1/2 in ACME (for car AC) ready for all AC jobs!
Come with a isolation ball valve: 1/4 turn to full open/close
SPECIFICATION:
POWER SUPPLY :110 VOLT
PUMPING RATE: 6.0 CFM
POWER: 1/2 HP(380 W)
WEIGHT: 27 Lb
MAX VACUUM:25 MICRONS, best rating in the industry!
Come with 6ft power cord (UL listed), power switch on the pump
Come with a bottle of vacuum oil, just dump it in, you are ready to go!

Model:	GMad
Item Title:	New Model: Dual Gauge Manifold Set with 5ft EPA Applied Hoses
Price:	$49.97
S&H:	$12.95 (for lower 48 States, 2X to HI, AK; 3X to Canada)
Checkout Choice 1: Credit Card or With PayPal Account: Choice 2: Google Checkout Account

Large 3 1/8" diameter easy-to-read, dual gauges,
mounted on anodized Aluminum alloy Block body(light weight, stronger than brass)
Large sight viewing glass
Flutter free shock resistant gauges.
Diaphragm valves with swivel seals for more positive seal and less wear
Large easy-to-grab hand-knobs
One full turn positively open/close valves
Extra large port holes/less restriction, for falter recovery or charging.
Pressure in PSIG
Temperature in F for R410A,
Temperature in F for R22, R134a, R404A
3 X 1/4" male SAE anchors in the gauge body as hose rest
one extra 1/4" male SAE Schroeder valve on the service line
a heavy duty hook for hanging the gauges
3 Color Coded High Pressure Hoses with Auto-Shut-Off Fittings
- 60 inch in length each
- 800 PSI working pressure, 4000 PSI burst pressure
- 45 degree angle on the service port site for easier access

Model:	CV22p
Item Title:	1/4 SAE MFL X 1/4 SAE FFL Connector, w/SS Ball Vale; Brass Swivel, 2 in a pack Brass
Price:	$24.95
S&H:	$5.95 (for lower 48 States, 2X to HI, AK; 3X to Canada)
Checkout Choice 1: Credit Card or With PayPal Account: Choice 2: Google Checkout Account

FEATURES:

One end, 1/4" SAE Male flair
the other end, 1/4 Female flair with swivel connector
The female connector has the valve depressing device to open the valve when engaged
Stainless steel ball valve in between. 1/4 turn to full open to close.
straight solid Brass body.
Purpose of use: isolate the pressure or vacuum; or just make you manifold hoses "not-open-ended".
2 in package, one blue, one red on the valve handle
In stock and ready to ship.
NOTE: other model/sizes of adapters available 1/4" SAE; to 5/16" and 1/2" ACME in different combinations, make sure to get the right adapter you need.

Model:	GM410A
Item Title:	R410 R22 R134a etc Gauge Manifold Set with 5ft EPA Applied, 1/4 Hose fittings, ON SALE NOW!
Price:	$77.77
S&H:	$9.95 (for lower 48 States, 2X to HI, AK; 3X to Canada)
Checkout Choice 1: Credit Card or With PayPal Account: Choice 2: Google Checkout Account

Large, easy-to-read 3 1/8" diameter steel case red and blue, 1% accuracy (Class 1) gauges; front access for easy field recalibration;Pressure in PSI; Temperature in F
Aluminum alloy Block body (light weight, but stronger than brass)
Color coded Easy to grab big nob control valve handles, double “O”-ring piston for reliability and long service life.
a sight viewing glass and see the inside action when charging/diagnosis/recovery
for these refrigerants: R410A, R22, R404A, making this manifold one set does it all.
3 Color Coded High Pressure 5ft Hoses with built-in low loss fittings
800 PSI working pressure; 4000 PSI burst pressure
1/4" female SAE brass fitting to the gauge block
The hose fittings on the service side come with built-in low-loss construction, making the set EPA applied.

Model:	BA3
Item Title:	Improved:Air Brush Flush Retrofit Cleaning Tool Kit Canister/hose/Gun Refill Reuse
Price:	$44.77
S&H:	$9.99 (for lower 48 States, 2X to HI, AK; 3X to Canada)
Checkout Choice 1: Credit Card or With PayPal Account: Choice 2: Google Checkout Account

Aluminum alloy tank/canister,
- strong and light weight,
- 18 oz capacity
- Contoured bottom, Never break or crack
Cap: Solid Brass:
- Threaded for easy removal
- Rubber seal, hand-tight is enough
- with a 150 PSI safety valve built-in
- with a heavy SS duty hook on it to hang the whole unit, preventing the unit from falling
- with a liquid siphon built to it to draw liquid from the bottom
Fill Side:
- 1/4" SAE male connector
- with SS ball valve for control and isolation
Discharge Side: 1/4" SAE male flair Connections, Never blow loose Connections,
Hose: 3 feet long
- 600 PSI working pressure 4000 PSI burst pressure
- 1/4" SAE FFL fittings on both ends, good for other tools as well
- yellow in color, can serve as utility hose for recovery, if you do not have one
Flushing gun:
- Heavy duty SS construction
- 1/4" SAE MFL to hose connection
- with thumb operated trigger, rubber lined
- Large rubber stopper, can work on and seal tubings/pipes up to 1&1/4" ID
Instruction on the bottle
Easy to Refill, cleans systems, inside and out
Compatible w/ N2, Comp air, CO2, mild detergents, flush agents
Whole kit designed solid and provide durable service for decades to come.
No clamp screws to tight, never need to worry about being blown loose by the high pressure.

Model:	GM410V4
Item Title:	4_Valve 4_Hose R410a R22 R134a Manifold Gauge Set with 1/4 Hose fittings(RYB),& 3ft 3/8 Vacuum hose
Price:	$89.77
S&H:	$13.95 (for lower 48 States, 2X to HI, AK; 3X to Canada)
Checkout Choice 1: Credit Card or With PayPal Account: Choice 2: Google Checkout Account

4-Valve Manifold for quick evacuation with 3/8 " vacuum port + hose to cut evacuation time by up to 33%
Large, easy-to-read 3 1/8" diameter steel case red and blue, 1% accuracy (Class 1) gauges; front access for easy field recalibration; Pressure in PSI, Temperature in F
mounted on Aluminum alloy Block body (light weight, but stronger than brass)
Color coded Easy to grab big nob control valve handles, double "O"-ring piston for reliability and long service life.
a sight viewing glass and see the inside action when charging/diagnosis/recovery
all hose ports and anchors are 1/4" except the big black one, which it 3/8"
SS Hose anchor plate on back side.
Temperature in F for these refrigerants: R410A, R22, R404A, making this manifold one set does it all.
Come with: 4 Color Coded High Pressure Hoses
60 inch in length each on RYB, 36 inches on big Black hose with 3/8 " SAE Connection
800 PSI working pressure; 4000 PSI burst pressure
1/4 " female SAE brass fitting on the service side with a 45 degree turn for easy access.
3/8 " SAE on both ends, faster evacuation.

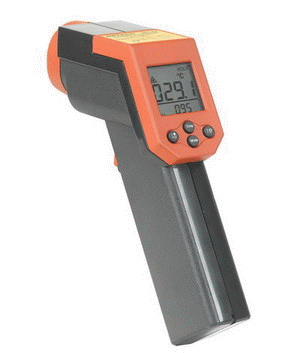

Non-Contact
Infrared Digital:
Thermometer

Model:	IRT12
Item Title:	ON SALE: Non-Contact Infrared Digital Thermometer, D:S=12:1; -50 to 1100 F
Price:	$29.77
S&H:	$5.75 (for lower 48 States, 2X to HI, AK; 3X to Canada)
Checkout Choice 1: Credit Card or With PayPal Account: Choice 2: Google Checkout Account

Technical Details:

Measuring temperature range: -50 ~ 600 °C (-58 ~ 1112 °F )
Distance to spot ratio: 12:1 (D:S)
Accuracy: +/- 1 °C( 1.8 °F) (from 10 to 100 °C), +/-2 % of reading
Response time: 1 second
Spectral response: 8 ~ 14 μ
Emissivity: adjustable from 0.10 to 1.00
Resolution: 0.1 °C
Operating temperature: 0 ~ 40 °C ( 32 ~ 104 °F)
Storage temperature: -20 ~ 65 °C ( -4 ~ 149 °F)
Power: 9V (included)
Size: 95*44*195mm
Weight: 200g (including battery)

Model:	DRS09
Item Title:	ON SALE: Digital Refrigerant Charging Scale, Most Accurate on the Market Model:DRS09; 1g to 77lb
Price:	$119.77
S&H:	$9.95 (for lower 48 States, 2X to HI, AK; 3X to Canada)
Checkout Choice 1: Credit Card or With PayPal Account: Choice 2: Google Checkout Account

Capacity: 77 pounds (35 kilograms)
Accuracy: +/- 0.1 oz (or 2 gram) at 77 degree F (25 degree C); The Most Sensitive refrigerant scale on the market!
Resolution: 0.03 oz (or 1g).
Back light
Tear /zero by pressing a button.
Compatible with all refrigerants.
Hard Plastic Carrying Case.
Works with 30 or 50 lb. charging/D.O.T. recovery tanks.
9" X 9" rubber lined platform.
9 VDC battery included.
Battery Life: 20 hours(continuously).

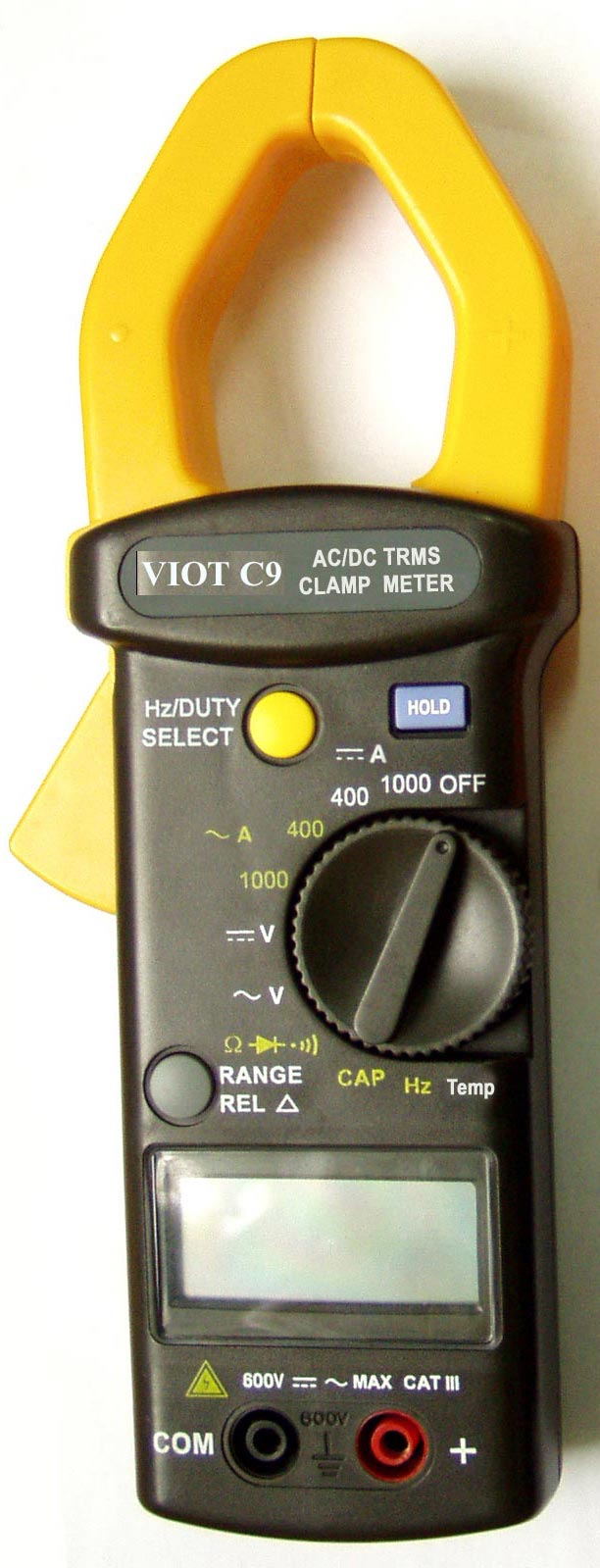

Model:	C9
Item Title:	True RMS AC/DC Clamp Ammeter Capacitor Tester w/Type K Thermocouple+Test Leads, Mighty C9
Price:	$47.77
S&H:	$4.95 (for lower 48 States, 2X to HI, AK; 3X to Canada)
Checkout Choice 1: Credit Card or With PayPal Account: Choice 2: Google Checkout Account

True RMS(TRMS)! More functions! Really POWERFUL!
AC/DC Voltage to 600 V;
AC/DC current to 1,000 amps; with Newly Patented technology!
Capacitance to 100 µF;
Frequency(Hz) test and duty cycle test;
Diode test;
Auto range to the millivolt/milliamp to test sensors like flame sensor, wheel speed sensor, etc.
Resistance: 0.01 ohm to 40 million ohms;
Continuity test with buzzer.
Temperature with K type thermocouple(temperature probe), included!
Data hold button
Large digital display.
One pair of test leads included.
Low Battery indication.
POWERED BY one 9V BATTERY, INCLUDED
Come with a soft carrying bag with wrist strap.
COMPLETE WITH ALL THE TEST LEADS, BATTERIES, Type K THERMOCOUPLE.

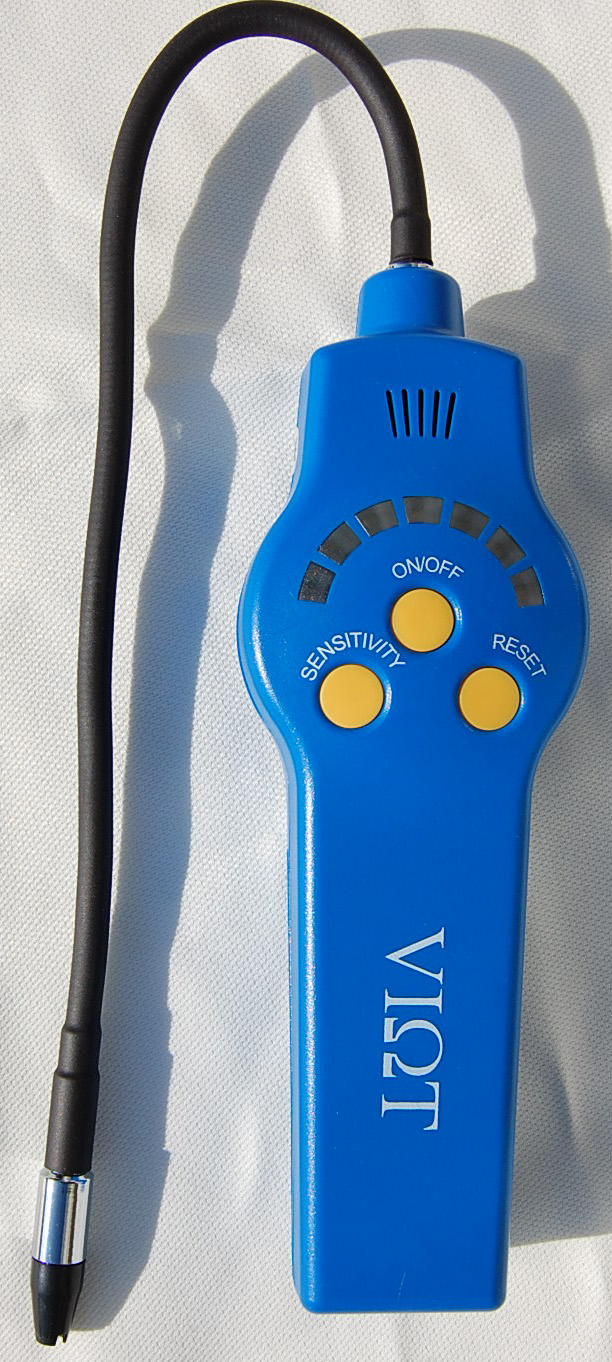

HLD-9

Model:	HLD9
Item Title:	Most Sensitive Halogen Refrigerant Leak Detector, w/AirPump
Price:	$87.77
S&H:	$9.95 (for lower 48 States, 2X to HI, AK; 3X to Canada)
Checkout Choice 1: Credit Card or With PayPal Account: Choice 2: Google Checkout Account

Compare this detector with Inficon units sell at $300 before you buy from us!
Our Newest Design and Technology in Halogen Detection!
Microprocessor controlled circuit switch Advanced Digital Signal Processing
Detects ALL halogenated refrigerants, CFCs, HCFCs, HFCs, and their blends.
Audible alarm with variable frequency, and visual LED indication.
Sensitivity adjustment, provides more control.
On/Off switch control and reset button to any back ground halogen level.
High Sensitivity: Less than 0.2 oz/year (or 6 grams/year) with R134a as the standard!
Air pump provides a positive flow of sampling all the time.
Come with a metal carrying case, best protection!
Cordless and portable.
Powered by 2 AA-sized batteries(included).
14 inch (35.5cm) flexible probe (rubber lined).
New design with slim body and a belt clip for easy carry around.
One extra spare sensing tip included.
Battery Life: Approximate. 20 hrs continuously.
